NEO-M9N-00B - Overview

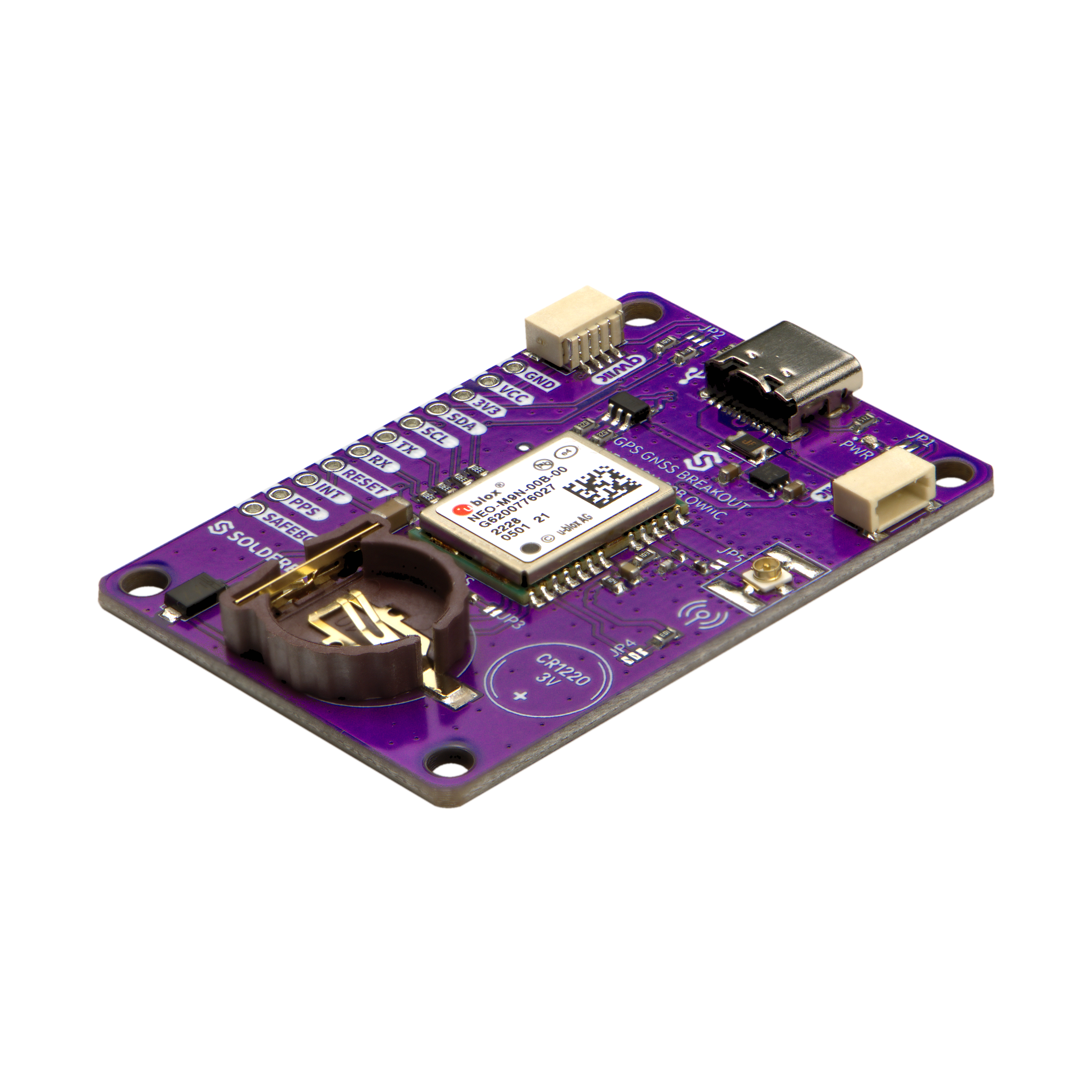

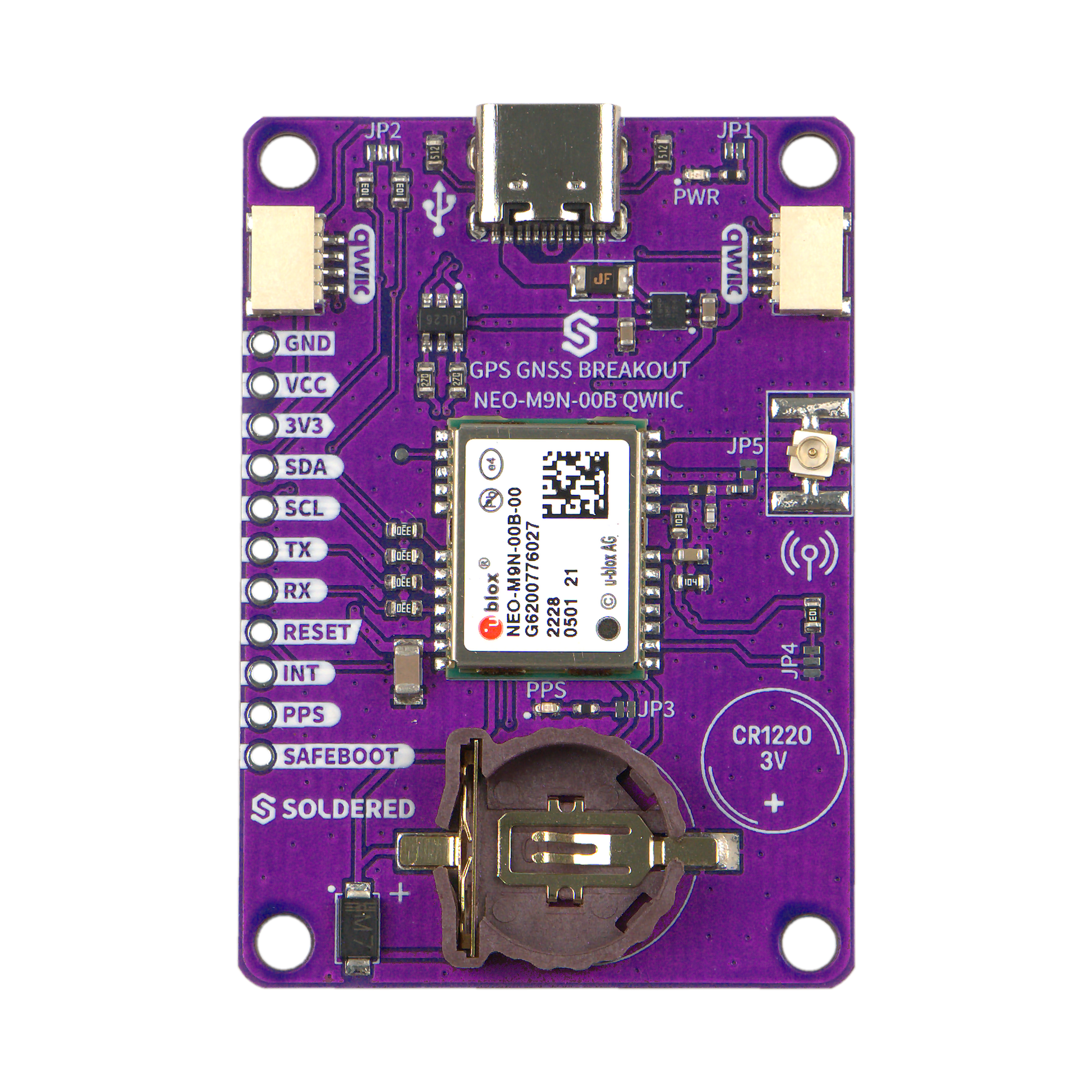

GPS Breakout NEO-M9N-00B​

The GPS Breakout NEO-M9N-00B is a GNSS positioning module based on the u-blox NEO-M9N receiver. It concurrently receives GPS, GLONASS, Galileo, and BeiDou signals, reaching up to 2.0 m CEP horizontal accuracy, and connects over I2C, UART, or SPI via two Qwiic connectors or a standard pin header.

Beyond position output, the module includes a configurable 1PPS timepulse, a jumper-selectable antenna bias voltage for active antennas, and an onboard CR1220 backup battery holder for faster fixes after a power cycle. It can be configured and monitored with u-blox's free u-center desktop software.

GPS Breakout NEO-M9N-00B
GPS Breakout NEO-M9N-00B

Which product is this documentation for?​

GPS Breakout NEO-M9N-00B

GPS Breakout NEO-M9N-00B

333378

Key Features​

  • GNSS constellations: GPS, GLONASS, Galileo, BeiDou (concurrent reception)
  • Position accuracy: 2.0 m CEP horizontal accuracy
  • Update rate: Up to 25 Hz
  • Time to first fix: ~24-29 s cold start, ~2 s hot/aided start
  • Data output: NMEA 0183 and UBX binary protocols
  • Timepulse: Configurable 1PPS output synchronized to GNSS time
  • Communication: I2C and UART simultaneously by default (default I2C address: 0x42), or SPI when switched over with the D_SEL jumper
  • Antenna power: Jumper-selectable bias voltage for active (amplified) GPS antennas
  • Backup battery: Onboard CR1220 coin-cell holder for faster hot/warm starts after a power cycle
  • Operating voltage: 3.3V (onboard regulator for 5V compatibility)
  • Connector: 2 × Qwiic ports
  • Mounting: Two mounting holes
  • Dimensions: 38 × 54 mm (1.5 × 2.1 inch)
