Smart LED WS2812B Grid 8x8​

The Smart LED WS2812 Grid 8x8 is a system of 64 daisy-chained WS2812B RGB LEDs arranged in a 8x8 grid pattern that can light up in any color as programmed. Each LED is individually addressable, allowing you to display animations, text, symbols, patterns, and dynamic lighting effects with ease. All components are placed on a single compact board, making it simple to integrate into your projects and easy to use with microcontrollers such as Arduino, ESP32 or Raspberry Pi.

ℹ️

It is possible to connect several modules with just a few wires and control several matrices at once!

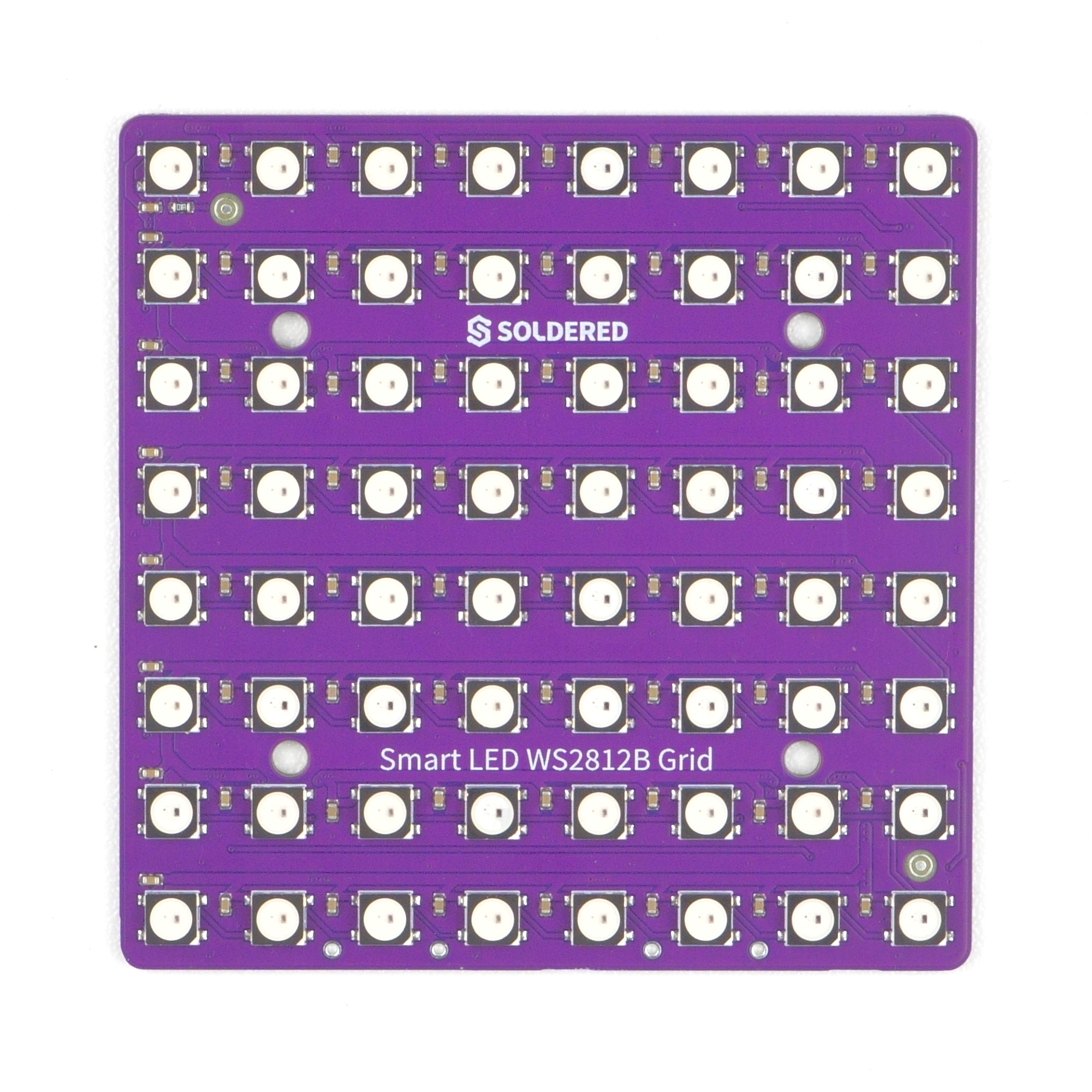

Smart LED WS2812B Grid 8x8
Smart LED WS2812B Grid 8x8

Which product is this documentation for?​

[link placeholder - shop page]

Key features​

  • 64 individually addressable WS2812B RGB LEDs arranged in an 8×8 grid
  • Full 24-bit color - 8 bits per channel, 16.7 million colors per LED
  • Single-wire data interface compatible with NeoPixel/WS2812 protocol
  • Chainable - connect multiple grids in series using the DIN/DOUT headers
  • 5V operation with one 100nF decoupling capacitor per LED for stable switching
  • 100Ω series resistor on the data input line for signal integrity
  • Compact 80 × 80 mm board with four 3.2mm mounting holes for panel mounting
  • Compatible with Arduino, ESP32, Raspberry Pi, and any 5V-tolerant digital output
