AS5600 - Direction

This page contains an example demonstrating initialization, direction configuration, and angle reading using the AS5600 magnetic position sensor.

---

Initialization

Include the library and create the sensor object:

#include "Position-sensor-AS5600-breakout-SOLDERED.h"

PositionSensor sensor;

In setup(), initialize the sensor and wait for a magnet to be detected:

void setup()
{
    Serial.begin(115200);

    Wire.begin();

    if (!sensor.begin())
    {
        Serial.println("AS5600 not found! Check wiring. Freezing.");
        while (true)
        {
            delay(1000);
        }
    }

    Serial.println("AS5600 found!");

    while (!sensor.magnetDetected())
    {
        Serial.println("Magnet not detected!");
        delay(1000);
    }

    Serial.println("Magnet detected!");
}

sensor.begin()

Initializes the AS5600 sensor and establishes I2C communication.

Returns value: Boolean value, true if the sensor is detected and communication succeeds, false otherwise.

sensor.magnetDetected()

Checks whether a magnet is positioned correctly above the AS5600 sensor.

Returns value: Boolean value, true if a magnet is detected, false otherwise.

Serial Monitor output when magnet is not detected

---

Direction configuration

In setup(), after initializing the sensor, call setDirection() to configure which rotation direction increases the angle:

// Set direction of angle increment to counterclockwise
sensor.setDirection(AS5600_COUNTERCLOCK_WISE);

sensor.setDirection()

Sets the direction in which the angle value increases when the magnet is rotated.

Returns value: None

Function parameters:

Type	Name	Description
int	direction	Use AS5600_COUNTERCLOCK_WISE for counterclockwise increase, or AS5600_CLOCK_WISE for clockwise increase.

Constant	Description
AS5600_COUNTERCLOCK_WISE	Angle increases counterclockwise
AS5600_CLOCK_WISE	Angle increases clockwise

---

Full example

#include <Wire.h>
#include "Position-sensor-AS5600-breakout-SOLDERED.h"

PositionSensor sensor;

void setup()
{
    Serial.begin(115200);

    Wire.begin();

    if (!sensor.begin())
    {
        Serial.println("AS5600 not found! Check wiring. Freezing.");
        while (true)
        {
            delay(1000);
        }
    }

    Serial.println("AS5600 found!");

    while (!sensor.magnetDetected())
    {
        Serial.println("Magnet not detected!");
        delay(1000);
    }

    Serial.println("Magnet detected!");

    // Set direction of angle increment to counterclockwise
    sensor.setDirection(AS5600_COUNTERCLOCK_WISE);
}

void loop()
{
    Serial.print(sensor.readAngle());                           // Angle as integer
    Serial.print("\t");
    Serial.println(sensor.rawAngle() * AS5600_RAW_TO_DEGREES);  // Angle in degrees

    delay(1000);
}

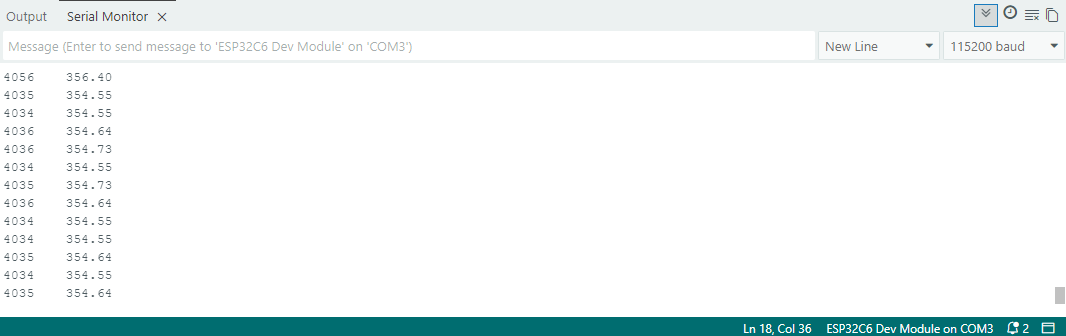

Serial Monitor output for direction detection

Direction.ino

Full example for direction detection using the AS5600 sensor
