How it works

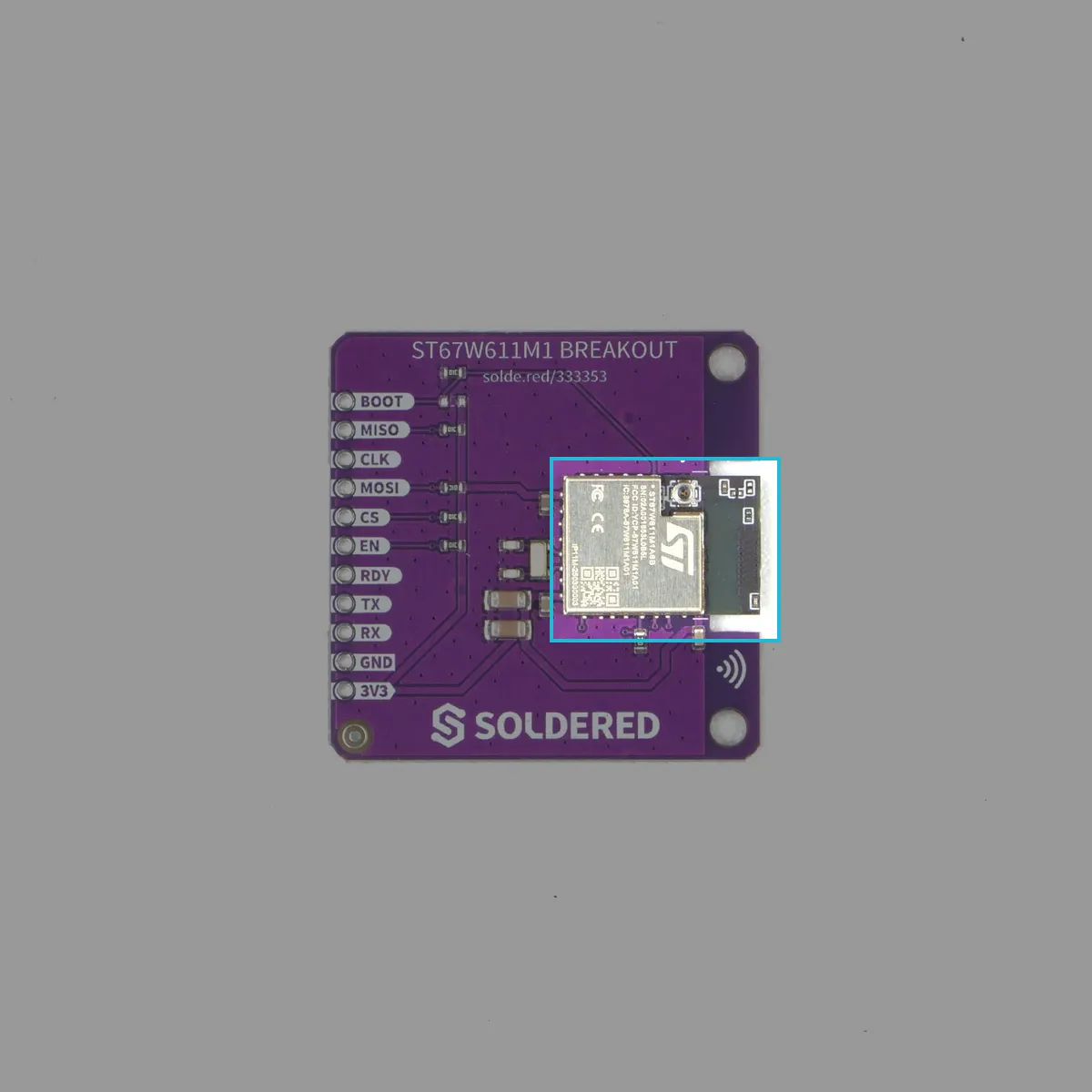

The ST67W611M1 Wireless Module is a compact and highly integrated solution designed to provide reliable wireless connectivity for embedded systems. Built around advanced radio and networking capabilities, it enables seamless communication over Wi-Fi networks, making it ideal for IoT devices, smart home applications, industrial monitoring, and connected electronics.
It supports standard networking protocols, ensuring compatibility with a wide range of devices and cloud services. With its onboard processing and memory resources, the ST67W611M1 can handle communication tasks efficiently while reduciong the load on the main minrocontroller.
Datasheet
For detailed technical specifications, please refer to the official ST67W611M1 Datasheet:
ST67W611M1 Datasheet
Complete technical documentation for ST67W611M1 module
How the ST67W611M1 works
The ST67W611M1 is a wireless connectivity module that adds Wi-Fi and Bluetooth Low Energy to a system. It works as a co-processor, meaning it handles all wireless communication while an external microcontroller (host MCU) runs the main application.
The host MCU communicates with the module through SPI or UART by sending commands such as connecting to a network or transmitting data. The module processes these commands internally and manages all Wi-Fi and Bluetooth operations, including protocol handling, radio control, and security.
The module integrates all required components, including the radio, antenna, clock, and memory. This reduces design complexity and eliminates the need for external RF circuitry. It also supports concurrent Wi-Fi and Bluetooth operation and includes built-in security features such as secure boot and firmware updates.
To optimize power consumption, the module provides several operating modes, from active communication to low-power sleep state, making it suitable for a wide range of IoT applications.
