ADS1219 24-bit ADC - Channel Selection

This page covers selecting which of the ADS1219's four input channels (or which differential pair) actually gets converted, using the input multiplexer.

---

Connections

Connect the ADS1219 board via Qwiic, and wire REFP/REFN to your chosen reference (see Single-Shot Reading for reference-voltage options).

Connect a signal source to AIN0 and GND - this example reads AIN0 single-ended, but any of the mux options below can be swapped in instead.

---

Selecting a channel

#include <Wire.h>
#include "ADS1219-SOLDERED.h"

ADS1219_Soldered adc;

void setup()
{
    Serial.begin(115200);
    Wire.begin();

    while (!adc.begin())
    {
        Serial.println("ADS1219 not found. Check wiring! Retrying...");
        delay(1000);
    }

    // Use REFP/REFN as the reference (tie them to VCC/GND, or a precision source)
    adc.setVoltageReference(ADS1219_VREF_EXTERNAL);

    // AIN0 vs GND (single-ended)
    adc.setMux(ADS1219_MUX_SINGLE_0);
}

void loop()
{
    if (!adc.startSync())
    {
        Serial.println("Failed to start conversion. Check wiring! Retrying...");
        delay(1000);
        return;
    }

    while (!adc.dataReady())
        delay(10);

    adc.readConversion();

    // 3300.0f is the reference voltage in millivolts (3.3V here) - change this
    // to match whatever you actually wired to REFP/REFN
    float mV = adc.getConversionMillivolts(3300.0f);

    Serial.print("Voltage (mV): ");
    Serial.println(mV, 3);
}

adc.setMux()

Selects which input channel or differential pair is routed to the ADC.

Returns value: Boolean value, true on success.

Function parameters:

Type	Name	Description
ads1219_mux_t	mux	ADS1219_MUX_SINGLE_0 through _3 for single-ended channels (each measured against GND), ADS1219_MUX_DIFF_P0_N1 / _P1_N2 / _P2_N3 for differential pairs, or ADS1219_MUX_SHORTED to measure the internal offset (AVDD/2 vs itself).

ℹ️

Swap ADS1219_MUX_SINGLE_0 for any of the other mux constants to read a different channel or pair - everything else in the sketch stays the same. ADS1219_MUX_DIFF_P0_N1 (AIN0 vs AIN1) is the default at power-on.

Open the Serial Monitor at 115200 baud to see the reading for whichever channel you selected.

Below are the Serial Monitor outputs from swapping in ADS1219_MUX_SINGLE_1, ADS1219_MUX_SINGLE_2, and ADS1219_MUX_SINGLE_3 in turn - reading AIN1, AIN2, and AIN3 the same way, with nothing else in the sketch changed.

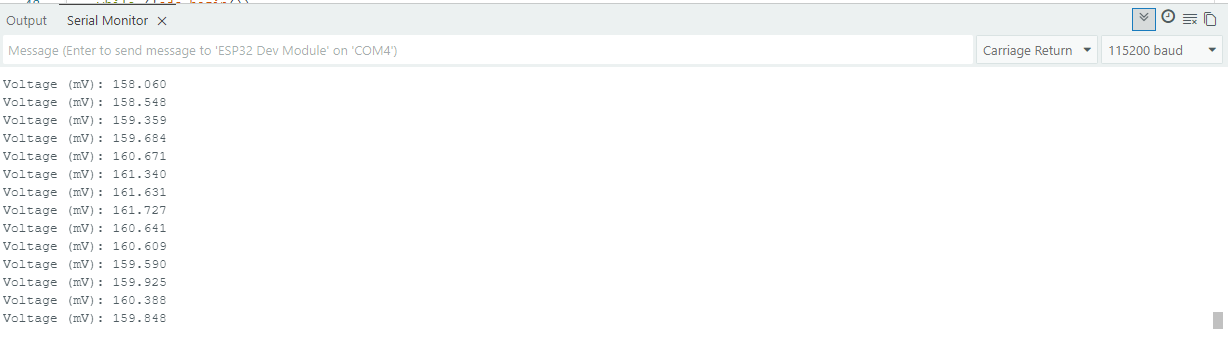

ADS1219_MUX_SINGLE_1 - reading AIN1 vs GND

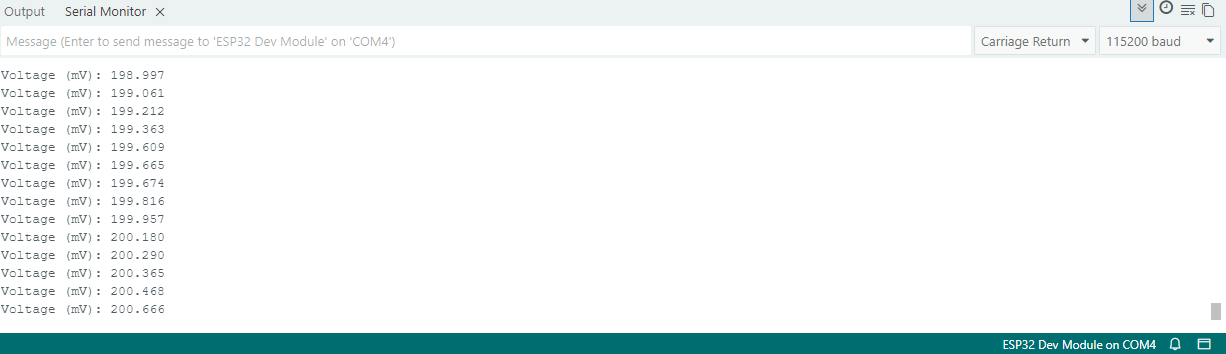

ADS1219_MUX_SINGLE_2 - reading AIN2 vs GND

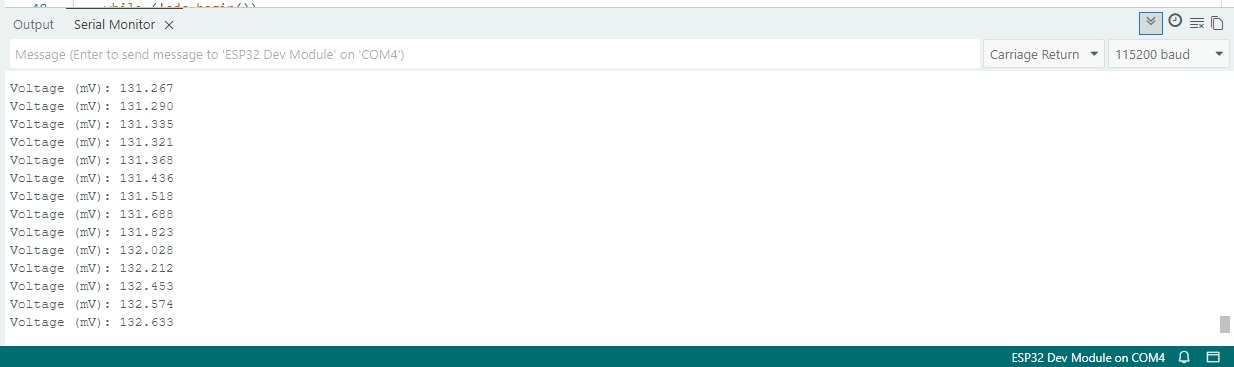

ADS1219_MUX_SINGLE_3 - reading AIN3 vs GND

Multiplexer.ino

Full input-multiplexer example for the ADS1219 24-bit ADC
