BMP388 Pressure & Temperature Sensor - Continuous measurement using FIFO

In this example we will be showing how to use the built-in FIFO buffer on the BMP388 sensor to store measurements and print them out when needed.

Setting Up

Initialization is done in a similar way as in the previous examples, with the main difference being that we initialize the FIFO with a set number of measurements which will be saved into the FIFO:

// Include Soldered BMP388 library.
#include <BMP388-SOLDERED.h>

// Number of measurements to be stored in the FIFO.
#define NO_OF_MEASUREMENTS 10

// Create BMP388 sensor object.
Soldered_BMP388 bmp388;

void setup()
{
    // Initialize serial communication at 115200 bauds.
    Serial.begin(115200);

    // Initialize sensor (check for sensor). Notify if init failed.
    // Also, this will set BMP388 sensor into sleep mode.
    if (!bmp388.begin())
    {
        // Print error message.
        Serial.println("Sensor not found! Check your wiring!");

        // Stop the code!
        while (1)
        {
            // Delay for ESP8266.
            delay(10);
        }
    }

    // Set current pressure at sea level to get accurate altitude readings.
    bmp388.setSeaLevelPressure(1025.0);

    // Enable the BMP388's FIFO.
    bmp388.enableFIFO();

    // Store 10 measurements in the FIFO before reading. Can be changed by modifing NO_OF_MEASUREMENTS define macro.
    bmp388.setFIFONoOfMeasurements(NO_OF_MEASUREMENTS);

    // Set the standby time of each sample to be roughly 1.3 seconds.
    bmp388.setTimeStandby(TIME_STANDBY_1280MS);

    // Start BMP388 continuous conversion in normal mode.
    bmp388.startNormalConversion();

    // Print message for the user.
    Serial.println(F("Please wait for 13 seconds..."));
}

bmp388.enableFIFO()

Enables the FIFO functionalities of the sensor

Returns value: None

bmp388.setFIFONoOfMeasurements(uint16_t noOfMeasurements)

Sets how many measurements will be saved into the FIFO buffer

Returns value: None

Function parameters:

Type	Name	Description
uint16_t	noOfMeasurements	Number if measurement samples which will be saved into the FIFO buffer

Taking measurements

Next, in the loop() function, we wait until the FIFO buffer is full, then we print out the measured values:

void loop()
{
    // Arrays to store measured data (array for temperature, pressure and altitude).
    float temperature[NO_OF_MEASUREMENTS];
    float pressure[NO_OF_MEASUREMENTS];
    float altitude[NO_OF_MEASUREMENTS];
    uint32_t sensorTime;

    // Check if the FIFO data is ready.
    // If the data is ready, get the 10 measurement readings.
    if (bmp388.getFIFOData(temperature, pressure, altitude, sensorTime))
    {
        // Print the results.
        for (uint16_t i = 0; i < NO_OF_MEASUREMENTS; i++)
        {
            Serial.print(i + 1);
            Serial.print(F(": "));
            Serial.print(temperature[i]);
            Serial.print(F("*C   "));
            Serial.print(pressure[i]);
            Serial.print(F("hPa   "));
            Serial.print(altitude[i]);
            Serial.println(F("m"));
        }

        // Print how long did it take to sample the measurement data into FIFO buffer.
        Serial.print(F("Sensor Time: "));
        Serial.println(sensorTime);
        Serial.println();

        // Print message for the user.
        Serial.println(F("Please wait for 13 seconds...")); // Wait message
    }
}

bmp388.getFIFOData(volatile float *temperature, volatile float *pressure, volatile float *altitude, volatile uint32_t &sensorTime)

Sets how many measurements will be saved into the FIFO buffer

Returns value: None

Function parameters:

Type	Name	Description
volatile float*	temperature	Variable in which the temperature value will be stored
volatile float*	pressure	Variable in which the pressure value will be stored
volatile float*	altitude	Variable in which the altitude value will be stored
volatile uint32_t*	sensorTime	Variable in which the time the sensor has been active value will be stored

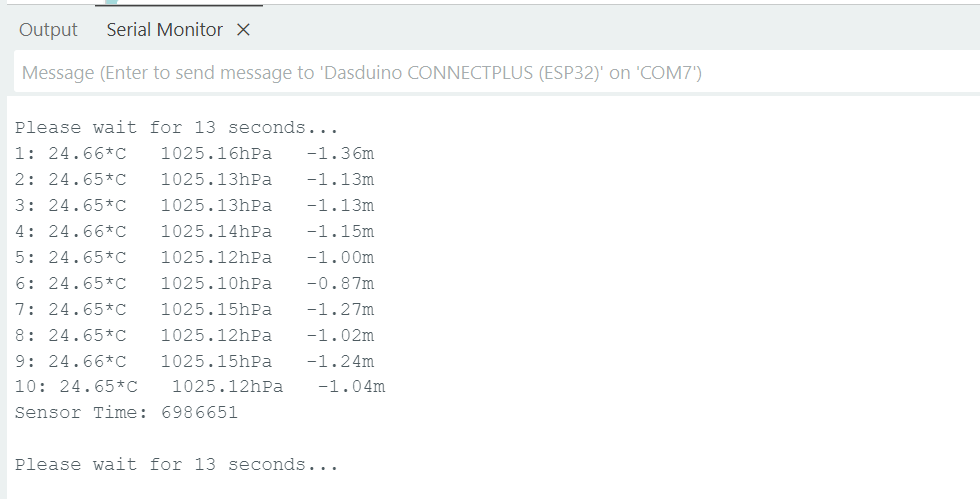

Serial monitor

Full example

You can find the full example below:

// Include Soldered BMP388 library.
#include <BMP388-SOLDERED.h>

// Number of measurements to be stored in the FIFO.
#define NO_OF_MEASUREMENTS 10

// Create BMP388 sensor object.
Soldered_BMP388 bmp388;

void setup()
{
    // Initialize serial communication at 115200 bauds.
    Serial.begin(115200);

    // Initialize sensor (check for sensor). Notify if init failed.
    // Also, this will set BMP388 sensor into sleep mode.
    if (!bmp388.begin())
    {
        // Print error message.
        Serial.println("Sensor not found! Check your wiring!");

        // Stop the code!
        while (1)
        {
            // Delay for ESP8266.
            delay(10);
        }
    }

    // Set current pressure at sea level to get accurate altitude readings.
    bmp388.setSeaLevelPressure(1025.0);

    // Enable the BMP388's FIFO.
    bmp388.enableFIFO();

    // Store 10 measurements in the FIFO before reading. Can be changed by modifing NO_OF_MEASUREMENTS define macro.
    bmp388.setFIFONoOfMeasurements(NO_OF_MEASUREMENTS);

    // Set the standby time of each sample to be roughly 1.3 seconds.
    bmp388.setTimeStandby(TIME_STANDBY_1280MS);

    // Start BMP388 continuous conversion in normal mode.
    bmp388.startNormalConversion();

    // Print message for the user.
    Serial.println(F("Please wait for 13 seconds..."));
}

void loop()
{
    // Arrays to store measured data (array for temperature, pressure and altitude).
    float temperature[NO_OF_MEASUREMENTS];
    float pressure[NO_OF_MEASUREMENTS];
    float altitude[NO_OF_MEASUREMENTS];
    uint32_t sensorTime;

    // Check if the FIFO data is ready.
    // If the data is ready, get the 10 measurement readings.
    if (bmp388.getFIFOData(temperature, pressure, altitude, sensorTime))
    {
        // Print the results.
        for (uint16_t i = 0; i < NO_OF_MEASUREMENTS; i++)
        {
            Serial.print(i + 1);
            Serial.print(F(": "));
            Serial.print(temperature[i]);
            Serial.print(F("*C   "));
            Serial.print(pressure[i]);
            Serial.print(F("hPa   "));
            Serial.print(altitude[i]);
            Serial.println(F("m"));
        }

        // Print how long did it take to sample the measurement data into FIFO buffer.
        Serial.print(F("Sensor Time: "));
        Serial.println(sensorTime);
        Serial.println();

        // Print message for the user.
        Serial.println(F("Please wait for 13 seconds...")); // Wait message
    }
}
