Inputronic BRIDGE - Basic example

This page shows a basic example of how to poll and read standard USB events (like Keyboard and Mouse inputs) from the Inputronic BRIDGE using the I2C protocol.

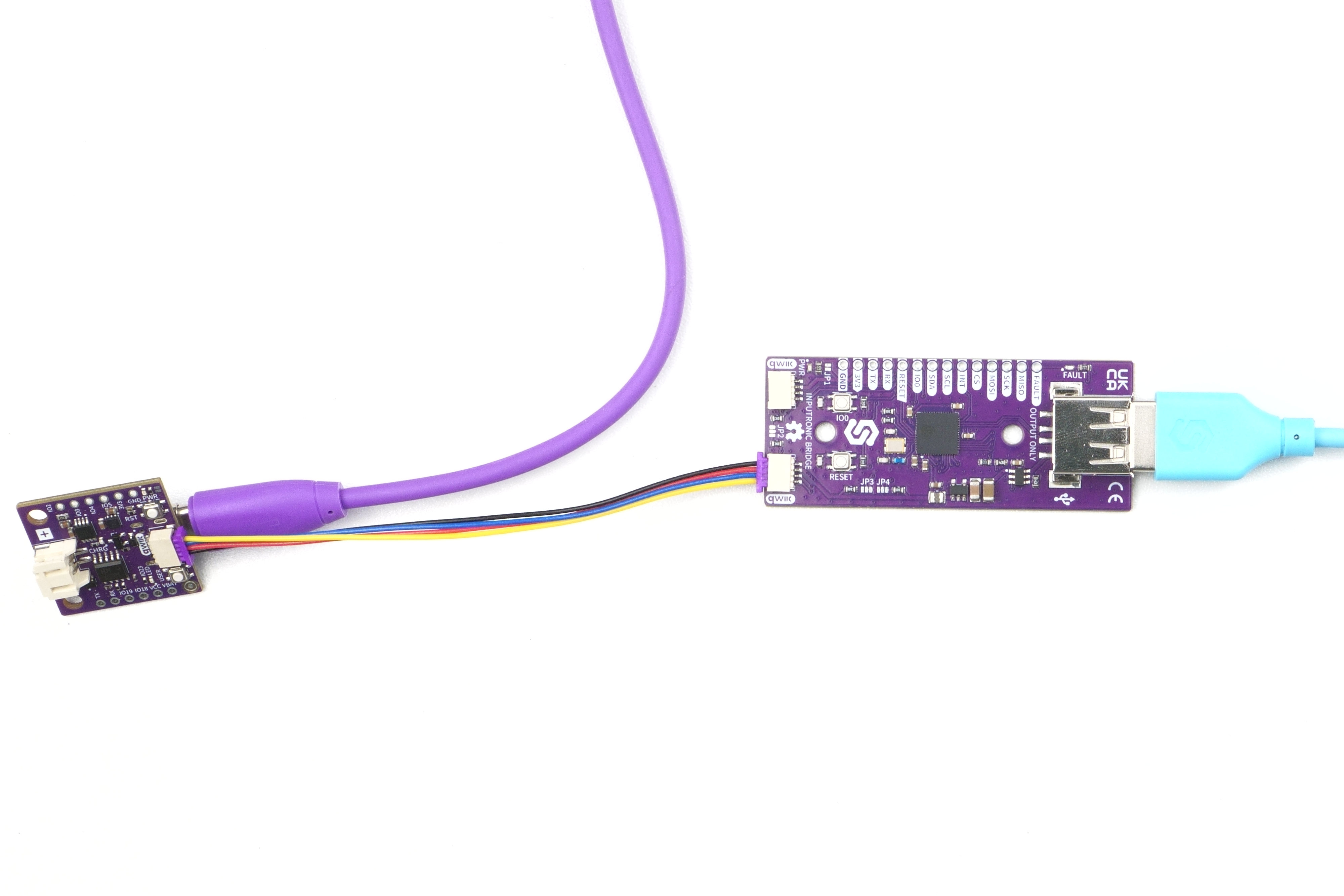

Module connection using qwiic cable

---

Connections for this example

For this example, we will use the easiest connection method: connecting the board via the Qwiic (formerly easyC) system to the Nula DeepSleep.

⚠️

Make sure the onboard protocol jumpers (JP3 & JP4) are left open, as this defaults the board to I2C communication.

---

Initialization

To use the Inputronic BRIDGE with a microcontroller, you need to include the appropriate library, create an instance of the InputronicParser object, and initialize it within the setup() function. This ensures proper communication between the host and the BRIDGE module. The begin() function is used to establish the connection and select the active protocol.

Here is an example of how to initialize the Inputronic BRIDGE over I2C:

#include "Inputronic-BRIDGE.h"

InputronicParser parser;

void setup()
{
    Serial.begin(115200);

    Wire.begin();

    parser.configureI2c(0x50);

    if (!parser.begin(InputronicParser::PROTOCOL_I2C, Wire))
    {
        Serial.println("Could not connect to BRIDGE over I2C!");
        while (true);
    }

    Serial.println("BRIDGE connected. Waiting for inputs...");
}

Reading Data

Once initialized, you can use the pollEvents() method inside your loop() to continuously check for new data from connected USB devices. The library automatically parses standard Keyboard and Mouse HID reports.

void loop()
{
    auto events = parser.pollEvents();

    if (events.keyboard.valid)
    {
        Serial.print("Keyboard: ");
        for (uint8_t i = 0; i < events.keyboard.keyCount; i++)
        {
            Serial.print(events.keyboard.keys[i]);
        }
        Serial.println();
    }

    if (events.mouse.valid)
    {
        Serial.printf("Mouse X:%d Y:%d L:%d R:%d\n",
                      events.mouse.x, events.mouse.y,
                      events.mouse.btnLeft, events.mouse.btnRight);
    }

    delay(10);
}

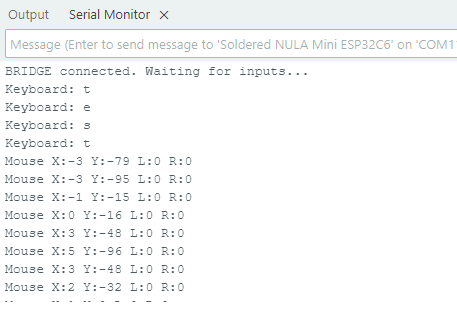

Output from Serial Monitor

---

Handling Keyboard and Mouse Events

When you call parser.pollEvents(), the library returns an EventBundle structure containing all the parsed data from connected USB devices.

parser.pollEvents()

Polls the BRIDGE for new data and parses the incoming payload into standard HID structures.

Returns value: Returns an EventBundle struct containing the parsed data for keyboards, mice, MIDI, and raw descriptors.

ℹ️

Understanding the EventBundle struct

When you call parser.pollEvents(), it returns an EventBundle object. This bundle contains several nested sub-structures, each representing a specific type of parsed USB data. You can access them using dot notation:

• events.keyboard - Contains valid (bool), keyCount (uint8_t), and keys (String array).
• events.mouse - Contains valid (bool), x / y coordinates (int16_t), scroll (int8_t), and button states (btnLeft, btnRight, etc.).
• events.midi - Contains valid (bool) and raw MIDI bytes (b1, b2, b3).
• events.descriptor - Contains valid (bool) and the hex string of requested USB descriptors.
• events.hidRaw - Contains valid (bool) and the hex string of unparsed raw HID reports.

Always check the .valid flag of a specific event type before trying to read its data variables.

Keyboard Events

To check if a keyboard event occurred, verify the events.keyboard.valid flag. If true, you can iterate through the events.keyboard.keys array up to events.keyboard.keyCount to read the currently pressed keys.

ℹ️

Understanding the KeyboardEvent struct

The events.keyboard object contains the following variables to help you process typing and key combinations:

• valid (bool) - Always check this first! It returns true if a new keyboard event has been registered.
• keyCount (uint8_t) - The total number of keys currently being pressed.
• keys (String array) - Contains the names or characters of the pressed keys (e.g., "A", "SHIFT", "ENTER"). You can iterate through this array up to the keyCount limit.
• key (char) - A single character representation of the primary pressed key.
• payload (String) - The raw text payload received directly from the BRIDGE.

Mouse Events

Similarly, check events.mouse.valid for mouse activity. The mouse structure provides relative movement data (events.mouse.x, events.mouse.y, events.mouse.scroll) and boolean flags for button states (e.g., events.mouse.btnLeft, events.mouse.btnRight).

ℹ️

Understanding the MouseEvent struct

The events.mouse object provides detailed movement and button state data:

• valid (bool) - Returns true if new mouse data has been registered.
• x / y (int16_t) - The relative movement of the mouse along the X (horizontal) and Y (vertical) axes since the last event.
• scroll (int8_t) - The relative movement of the scroll wheel.
• Button States (bool) - Standard buttons: btnLeft, btnRight, btnMiddle.
• Extra Button States (bool) - Additional buttons: btnBackward, btnForward, btnScrollWheel. These return true if the button is currently held down.

---

Full example

In this example, we first include the necessary library and create an instance of the InputronicParser. Inside setup(), we initialize the I2C bus and attempt to connect to the BRIDGE. In the loop(), we continuously poll the module for new events and print the parsed keyboard characters and mouse movements to the Serial Monitor.

#include "Inputronic-BRIDGE.h"

InputronicParser parser;

void setup()
{
    Serial.begin(115200);

    Wire.begin();

    parser.configureI2c(0x50);

    if (!parser.begin(InputronicParser::PROTOCOL_I2C, Wire))
    {
        Serial.println("Could not connect to BRIDGE over I2C!");
        while (true);
    }

    Serial.println("BRIDGE connected. Waiting for inputs...");
}

void loop()
{
    auto events = parser.pollEvents();

    if (events.keyboard.valid)
    {
        Serial.print("Keyboard: ");
        for (uint8_t i = 0; i < events.keyboard.keyCount; i++)
        {
            Serial.print(events.keyboard.keys[i]);
        }
        Serial.println();
    }

    if (events.mouse.valid)
    {
        Serial.printf("Mouse X:%d Y:%d L:%d R:%d\n",
                      events.mouse.x, events.mouse.y,
                      events.mouse.btnLeft, events.mouse.btnRight);
    }

    delay(10);
}

parser.begin()

Initializes the Inputronic BRIDGE parser and establishes communication.

Returns value: Returns true if initialization is successful, false otherwise.

Function parameters:

Type	Name	Description
CommProtocol	p	The communication protocol to use (e.g., PROTOCOL_I2C, PROTOCOL_UART, PROTOCOL_SPI).
TwoWire &	wire	Reference to the communication bus object (e.g., Wire, Serial1, SPI).

parser.configureI2c()

Sets the I2C address for the BRIDGE module. Should be called before begin().

Returns value: None

Function parameters:

Type	Name	Description
uint8_t	address	The I2C address of the board (default is 0x50).
