WS2812 Grid - Examples

This page covers how to initialize the WS2812 Grid library and use its core functions — setting individual pixels, filling the entire grid, reading back pixel colors, and building animations with the provided helper methods.

---

Connections for this example

---

Initialization

Create a WS2812Grid object by passing the data pin number (and optionally the grid width and height for non-standard grids). Call begin() once in setup() to initialize the LED driver, blank the display, and push the initial state to the hardware. Use setBrightness() to cap the maximum output — the board runs on 5V and at full brightness 64 LEDs can draw nearly 4 A, so starting at 40 out of 255 is both eye-friendly and power-friendly.

#include "WS2812Grid-SOLDERED.h"

#define PIN 5

WS2812Grid grid(PIN);

void setup()
{
    grid.begin();
    grid.setBrightness(40); // 0–255, start low!
}

WS2812Grid()

Constructs a WS2812Grid driver for an LED matrix connected to the given data pin. Width and height default to 8 if not specified, matching the standard 8×8 breakout board.

Returns value: None (constructor)

Function parameters:

Type	Name	Description
uint8_t	pin	Arduino pin connected to the grid DIN line.
uint8_t	width	Number of LED columns. Defaults to 8.
uint8_t	height	Number of LED rows. Defaults to 8.

grid.begin()

Initializes the underlying WS2812 driver, clears all pixel data, and calls show() to blank the display. Must be called once in setup() before any other grid functions.

Returns value: None

---

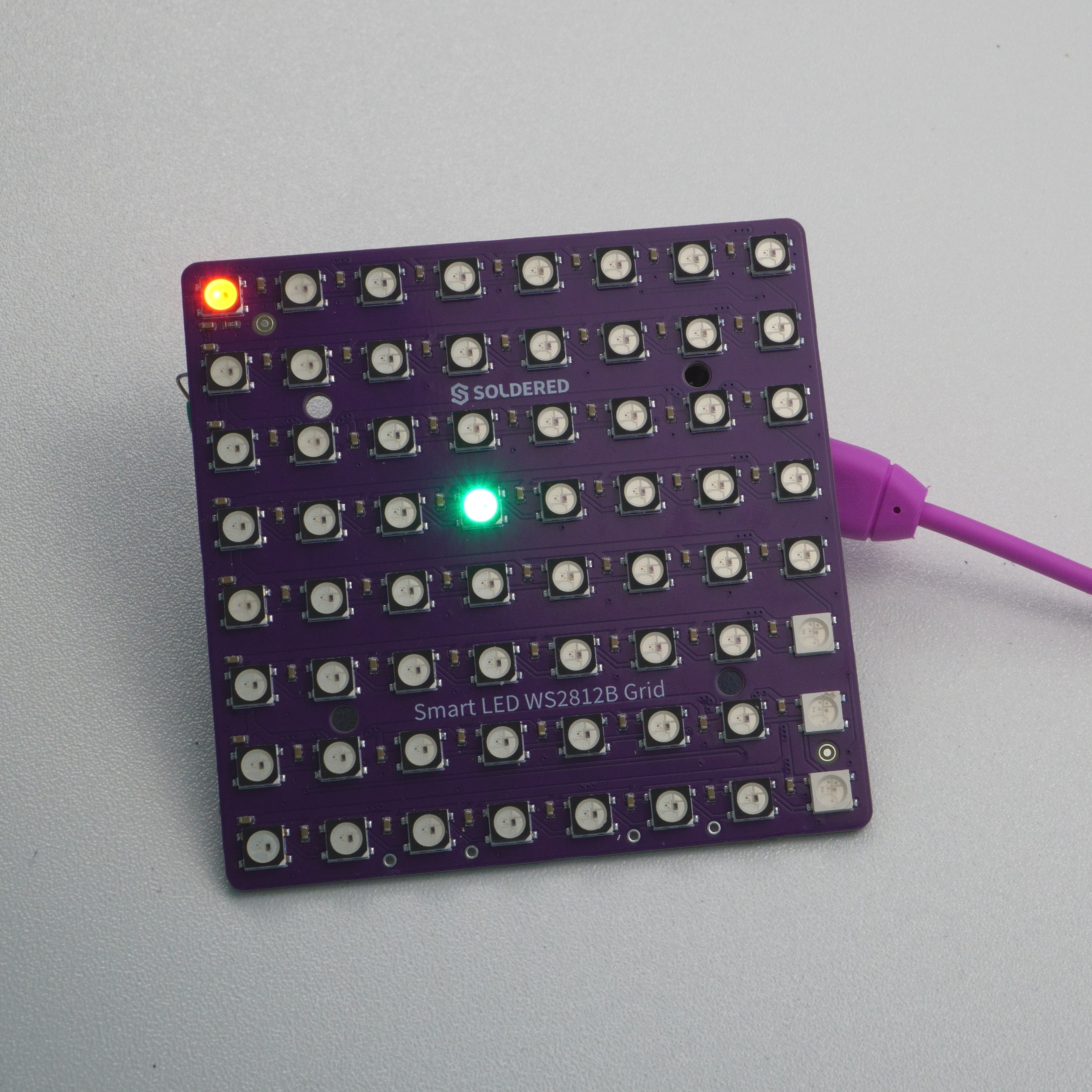

Setting a single pixel

setPixel() lets you address any LED by its (x, y) coordinate — column 0 is on the left, row 0 is at the top. You can supply either three separate RGB byte values or a single packed 32-bit color built with WS2812Grid::Color(). After updating pixels, call show() to push the changes to the hardware.

void loop()
{
    grid.setPixel(0, 0, 255, 0, 0);

    grid.setPixel(3, 3, WS2812Grid::Color(0, 255, 0));

    grid.show();
    delay(1000);

    grid.clear();
    grid.show();
    delay(1000);
}

grid.setPixel()

Sets the color of a single LED at column x, row y using separate green, red, and blue components. The change is buffered until show() is called. Out-of-range coordinates are silently ignored.

Returns value: None

Function parameters:

Type	Name	Description
uint8_t	x	Column index, 0 = leftmost column.
uint8_t	y	Row index, 0 = top row.
uint8_t	g	Green component (0–255).
uint8_t	r	Red component (0–255).
uint8_t	b	Blue component (0–255).

grid.setPixel()

Sets the color of a single LED at column x, row y using a packed 32-bit color value. Use WS2812Grid::Color(g, r, b) to construct the value. The change is buffered until show() is called.

Returns value: None

Function parameters:

Type	Name	Description
uint8_t	x	Column index, 0 = leftmost column.
uint8_t	y	Row index, 0 = top row.
uint32_t	color	Packed color value. Build it with WS2812Grid::Color(g, r, b).

---

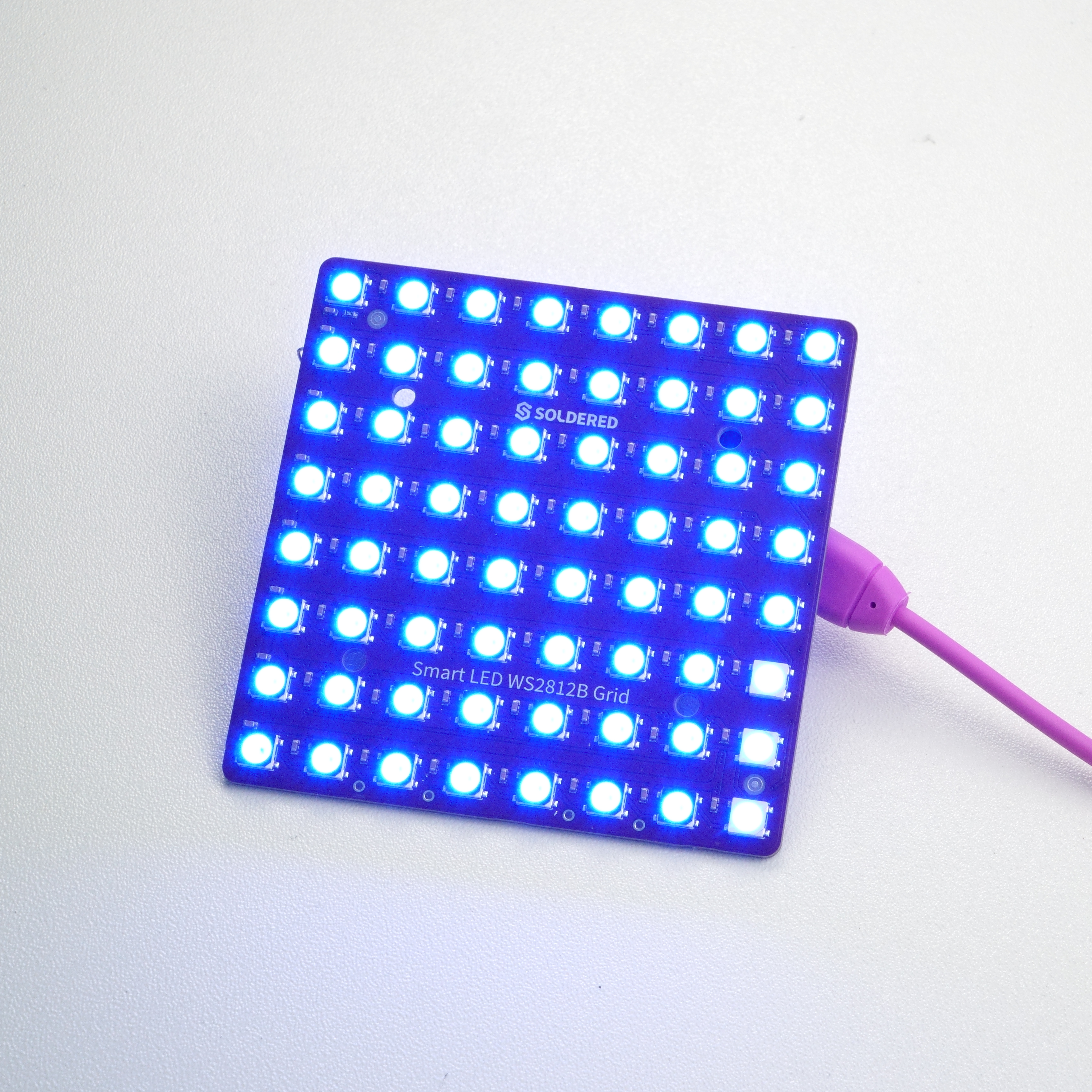

Filling the entire grid

To paint every LED the same color in one call, use fill(). It accepts either RGB components or a packed color. This is useful for setting a background color before drawing individual pixels on top.

void loop()
{
    // Fill everything blue
    grid.fill(0, 0, 180);
    grid.show();
    delay(1000);

    // Fill with a packed color (orange)
    grid.fill(WS2812Grid::Color(255, 80, 0));
    grid.show();
    delay(1000);

    // Blank the display
    grid.clear();
    grid.show();
    delay(1000);
}

grid.fill()

Sets every LED on the grid to the same color specified by individual green, red, and blue components. The change is buffered until show() is called.

Returns value: None

Function parameters:

Type	Name	Description
uint8_t	g	Green component (0–255).
uint8_t	r	Red component (0–255).
uint8_t	b	Blue component (0–255).

grid.fill()

Sets every LED on the grid to the same packed 32-bit color. Use WS2812Grid::Color(g, r, b) to construct the value. The change is buffered until show() is called.

Returns value: None

Function parameters:

Type	Name	Description
uint32_t	color	Packed color value (0x00RRGGBB).

---

Reading back a pixel color

getPixel() returns the currently buffered color for any grid coordinate as a packed 32-bit value. This is handy when you need to inspect the current state of the grid without maintaining a separate framebuffer.

uint32_t c = grid.getPixel(3, 3);
uint8_t red   = (c >> 16) & 0xFF;
uint8_t green = (c >>  8) & 0xFF;
uint8_t blue  =  c        & 0xFF;

grid.getPixel()

Returns the buffered packed color (0x00RRGGBB) stored for the LED at column x, row y. Returns 0 if the coordinates are out of range. Reflects the last value written by setPixel() or fill(), not necessarily what is currently displayed on hardware.

Returns value: uint32_t packed color (0x00RRGGBB), or 0 if out of range.

Function parameters:

Type	Name	Description
uint8_t	x	Column index, 0 = leftmost column.
uint8_t	y	Row index, 0 = top row.

---

Animations example

The sketch below combines setPixel() and show() to run two animations back-to-back: a row sweep that lights one row at a time from top to bottom, and a rainbow that maps a continuously shifting color wheel across all 64 LEDs.

#include "WS2812Grid-SOLDERED.h"

#define PIN 5

WS2812Grid grid(PIN);

// Simple HSV-to-RGB color wheel: hue 0–255
static uint32_t colorWheel(uint8_t pos)
{
    pos = 255 - pos;
    if (pos < 85)
        return WS2812Grid::Color(255 - pos * 3, 0, pos * 3);
    if (pos < 170)
    {
        pos -= 85;
        return WS2812Grid::Color(0, pos * 3, 255 - pos * 3);
    }
    pos -= 170;
    return WS2812Grid::Color(pos * 3, 255 - pos * 3, 0);
}

void rowSweep()
{
    for (uint8_t y = 0; y < 8; y++)
    {
        grid.clear();
        for (uint8_t x = 0; x < 8; x++)
            grid.setPixel(x, y, 0, 180, 255);
        grid.show();
        delay(80);
    }
}

void rainbowGrid(uint8_t cycles)
{
    for (uint8_t c = 0; c < cycles; c++)
    {
        for (uint16_t hue = 0; hue < 256; hue++)
        {
            for (uint8_t y = 0; y < 8; y++)
                for (uint8_t x = 0; x < 8; x++)
                {
                    uint8_t offset = (x + y * 2) & 0xFF;
                    grid.setPixel(x, y, colorWheel((hue + offset) & 0xFF));
                }
            grid.show();
            delay(10);
        }
    }
}

void setup()
{
    grid.begin();
    grid.setBrightness(40);
}

void loop()
{
    rowSweep();
    delay(200);
    rainbowGrid(2);
    delay(200);
}
