Hardware design
Inkplate 6 is an open-source product, and we are happy to share an overview of its hardware design. On the following pages, you'll find schematics, KiCad design files, and other technical details related to the hardware. Whether you're looking to modify, troubleshoot, or simply understand the inner workings of Inkplate, this section has everything you need.
Basic overview

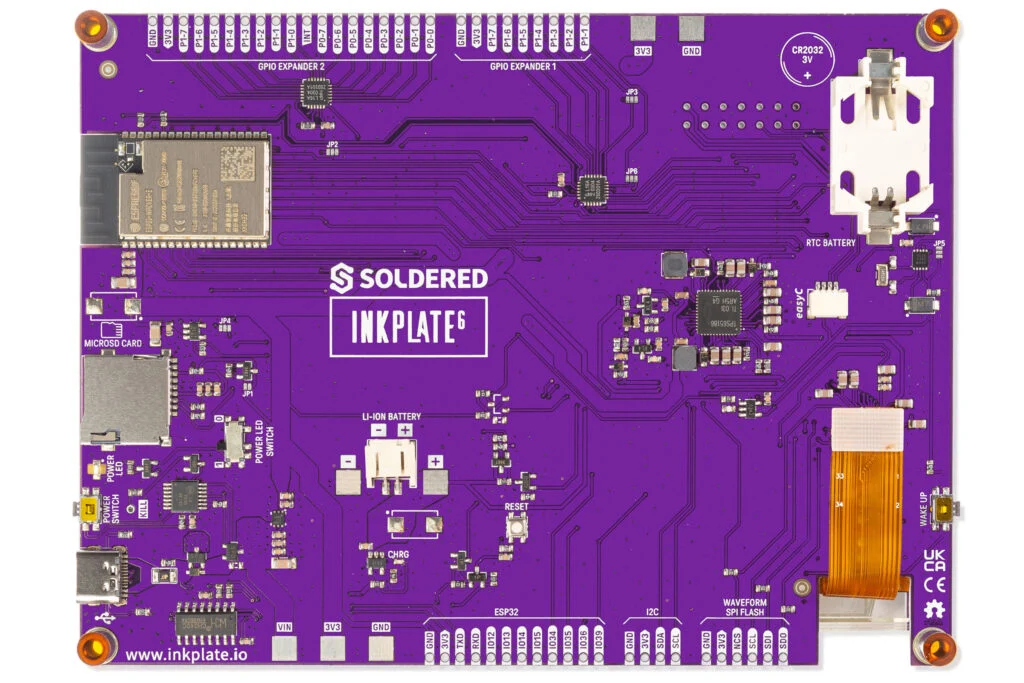

Inkplate 6 is built around a 6″ e-paper panel and an ESP32-WROVER, which handles both Wi-Fi and Bluetooth. A single USB-C port covers power and programming, with a CH340C doing the USB-to-UART conversion.
The e-paper rails come from a TI TPS65186, which also reads the panel's NTC thermistor so you can get a temperature reading. Battery charging is handled by a Microchip MCP73831. For expansion there are free GPIO pins, I2C, SPI, an easyC/Qwiic header and a microSD slot.
E-paper panel
The ED060SC7 is a 6-inch e-paper display panel from E Ink Holdings Inc. This model is without a frontlight or touchscreen, making it ideal for low-power, high-contrast applications such as e-book readers.
It has 480,000 pixels, a reflective matte treatment, and supports 3-bit grayscale. The display operates in a 0°C to 50°C temperature range and can be stored between -25°C and 70°C.
Inkplate mounts the panel in landscape, so the frame buffer you draw into is 800 px wide by 600 px tall. The datasheet below quotes the panel's own portrait orientation, where the 600-pixel axis is H and the 800-pixel axis is V, the same panel, described along the other axis.
See the table below for detailed specifications:
| Specification | Details |
|---|---|
| Brand | E Ink |
| Model Number | ED060SC7 |
| Diagonal Size | 6 inches |
| Resolution | 600 (H) x 800 (V) pixels |
| Pixel Format | Rectangle |
| Pixel Pitch | 0.151 (H) 0.153 (V) mm |
| Active Area | 90.6 (H) 122.4 (V) mm |
| Outline Dimensions | 101.8 (W) 138.4 (H) 1.18 (D) mm |
| Module Weight | 34 g |
| Touchscreen | No (this version has no touchscreen) |
| Backlight | No backlight, no driver |
| Interface | Parallel |
| Voltage Supply | 3.3V (Typ.) |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | -25°C to 70°C |
