Inkplate 6 – Hardware files

The hardware repositories for Inkplate 6 hardware files can be found at the following links:

Soldered Inkplate 6 hardware design

Hardware design, BOM, gerbers, and 3D files for Soldered Inkplate 6, designed by Soldered Electronics

Repository contents​

The Inkplate 6 hardware repository contains everything you need to understand, modify, or manufacture the board. Below is an overview of the available files:

CAD files​

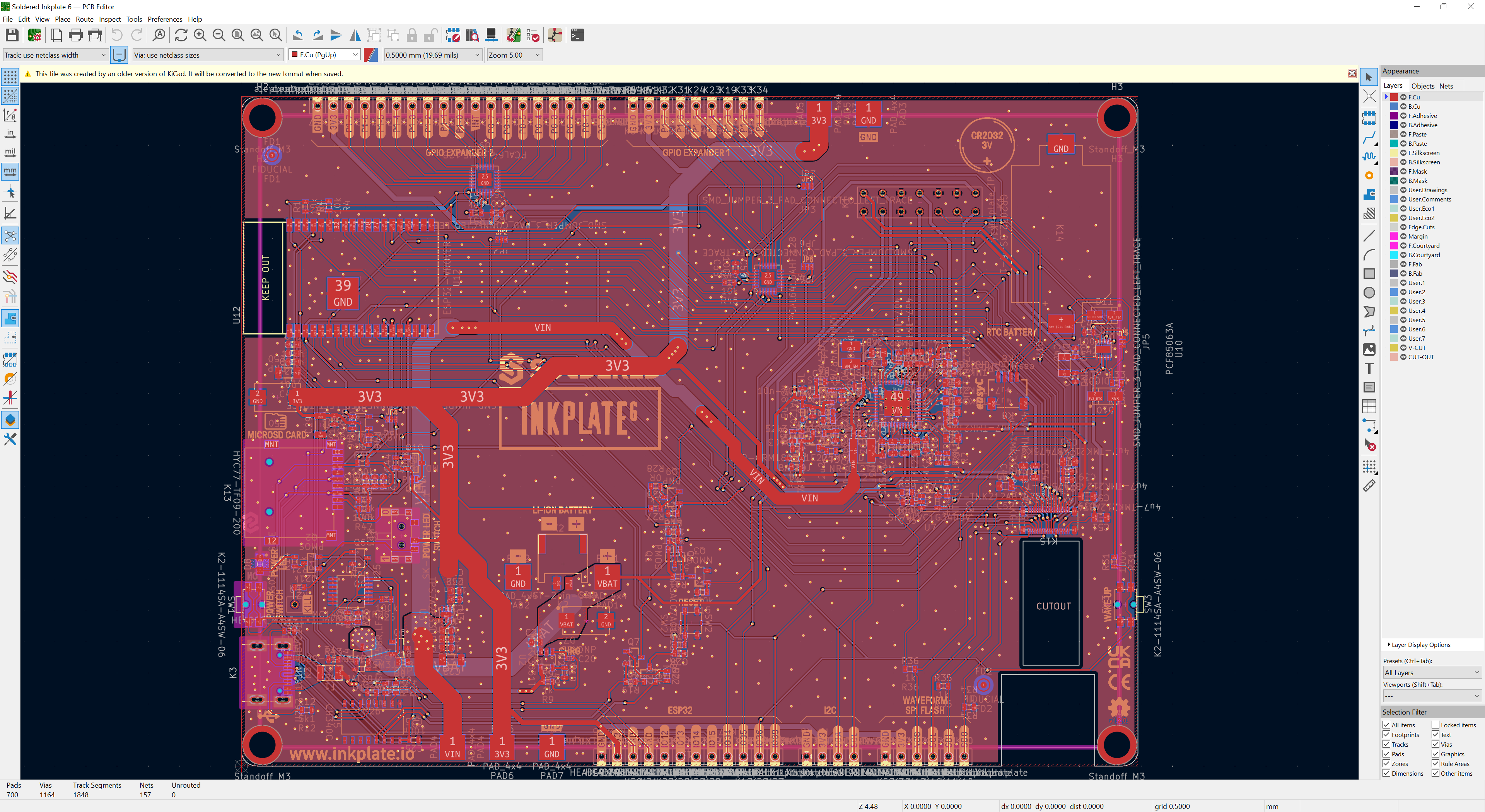

We use KiCad, an open-source PCB design tool. You can open and edit the .kicad_pro project file, which includes both the schematic and PCB layout.

The PANEL files are used internally for production.

Inkplate 6 KiCad project
Inkplate 6 KiCad project

Schematic​

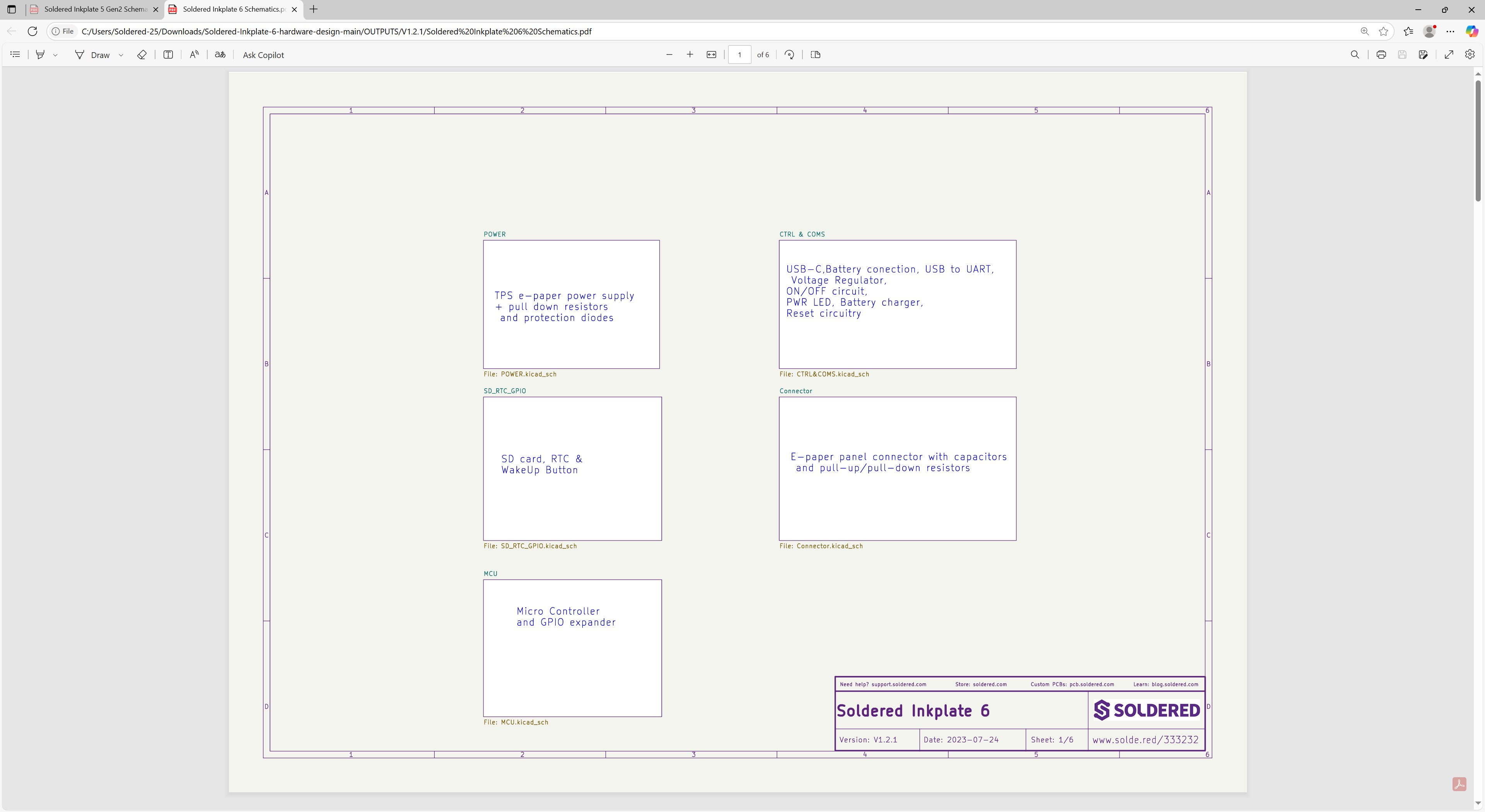

The OUTPUTS folder contains the schematic in .pdf format, exported from KiCad. The schematic is divided into sections based on functionality, making it easy to navigate.

Inkplate 6 schematic
Inkplate 6 schematic 1/6

BOM (Bill of Materials)​

The bill of materials (BOM) is provided in two formats:

  • A standard .csv table, listing all components, part numbers, and values.

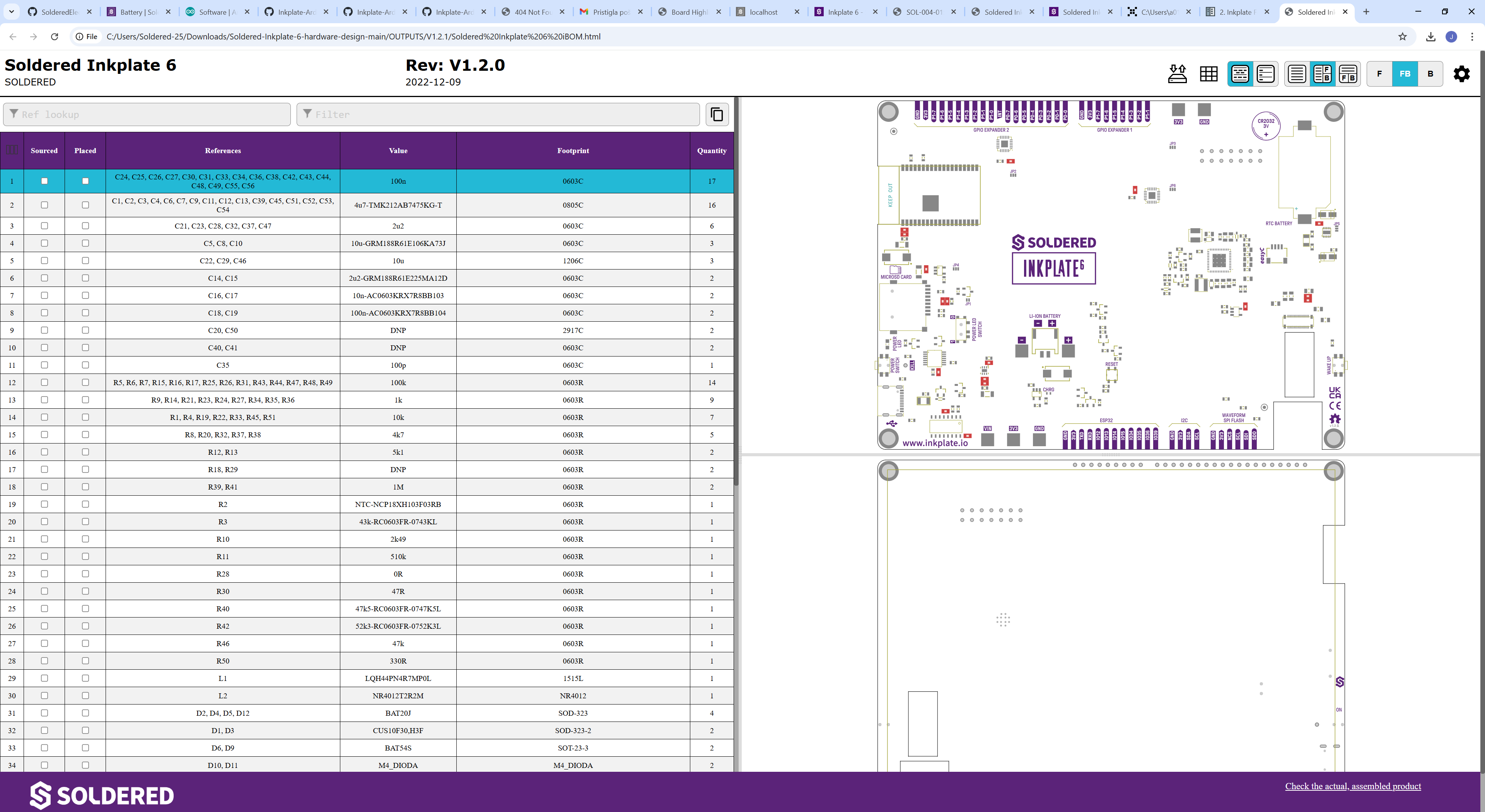

  • An interactive BOM (.html) that visually highlights each component on the PCB, making it easy to locate and reference parts.
Inkplate 6 interactive BOM
Interactive BOM for Inkplate 6

3D files​

A 3D model of the PCB is available in .step format, allowing you to inspect the board design in CAD software.

Gerber files​

Gerber files are essential for PCB manufacturing, as they contain precise instructions for each layer of the board. The repository includes standard Gerber outputs in a .zip file, such as:

  • Copper layers (.Cu.gbr) define the traces and pads on the board.
  • Solder mask layers (.Mask.gbr) specify where the protective solder mask goes.
  • Silkscreen layers (.Silkscreen.gbr) hold the text and component markings.
  • Paste layers (.Paste.gbr) are used to make the stencil for SMD assembly.
  • Drill files (.drl) give the coordinates for vias and holes.
  • The board outline (.Edge_Cuts.gbr) defines the shape of the PCB.
  • The Gerber job file (.gbrjob) lists which Gerber files belong to the set.

These files are ready for fabrication and can be used in PCB manufacturing.
