Inkplate 13SPECTRA – Image from microSD

To draw images from the microSD card, use the image.draw() function.

ℹ️

Supported formats are: JPG, BMP and PNG.

⚠️

JPG files without progressive encoding are supported.

---

Drawing PNG, JPG and BMP files from the microSD card

Let's draw example images of different formats on Inkplate. Download them from the [LINK PLACEHOLDER - images for sd_image example] and place them in the root folder of the microSD card:

#include "Inkplate.h" // Include the Inkplate library in the sketch
Inkplate display;     // Create an Inkplate object and set the library to 3-bit mode
SdFile file;          // Create an SdFile object used for accessing files on the SD card

void setup()
{
    // Initialize serial communication
    Serial.begin(115200);

    display.begin();             // Initialize the Inkplate library (you should call this function only once)
    display.clearDisplay();      // Clear the display's frame buffer
    display.setTextColor(BLACK); // Set text color to black
    display.setTextSize(3);      // Set the font size to 3

    // Initialize the SD card. Display whether the SD card is properly initialized or not.
    if (display.sdCardInit())
    {
        Serial.println("SD Card OK! Reading image...");

        // If the card is properly initialized, try to load the image and display it on the e-paper at position X=0, Y=0
        // NOTE: Both drawImage methods allow for an optional fifth "invert" parameter. Setting this parameter
        // to true will flip all colors on the image, making black white and white black. This may be necessary when
        // exporting bitmaps from certain software.
        if (display.image.draw("picture1.jpg", 0, 0, 1))
        {
            display.display();
            delay(5000);
        }
        else
        {
            // If something fails (wrong filename or wrong bitmap format), write an error message on the Serial Monitor.
            // REMEMBER! You can only use Windows Bitmap files with color depths of 1, 4, 8 or 24 bits with no compression!
            // You can turn off dithering for somewhat faster image load by changing the last 1 to 0, or removing the '1' argument completely.
            Serial.println("Image open error");
        }

        // Now try to load the image using the SdFat library class (for more advanced users) and display the image on the e-paper.
        display.clearDisplay();
        if (file.open("picture2.jpg", O_RDONLY))
        {
            display.image.drawJpegFromSd(&file, 0, 0);
            display.display();
            delay(5000);
        }
        else
        {
            Serial.println("Image open error");
        }
    }
    else
    {
        // If the SD card initialization is unsuccessful, display an error on the screen
        Serial.println("SD Card error!");
    }

    // Turn off the MOSFET that powers the SD card
    display.sdCardSleep();
}

void loop()
{
    // Nothing...
}

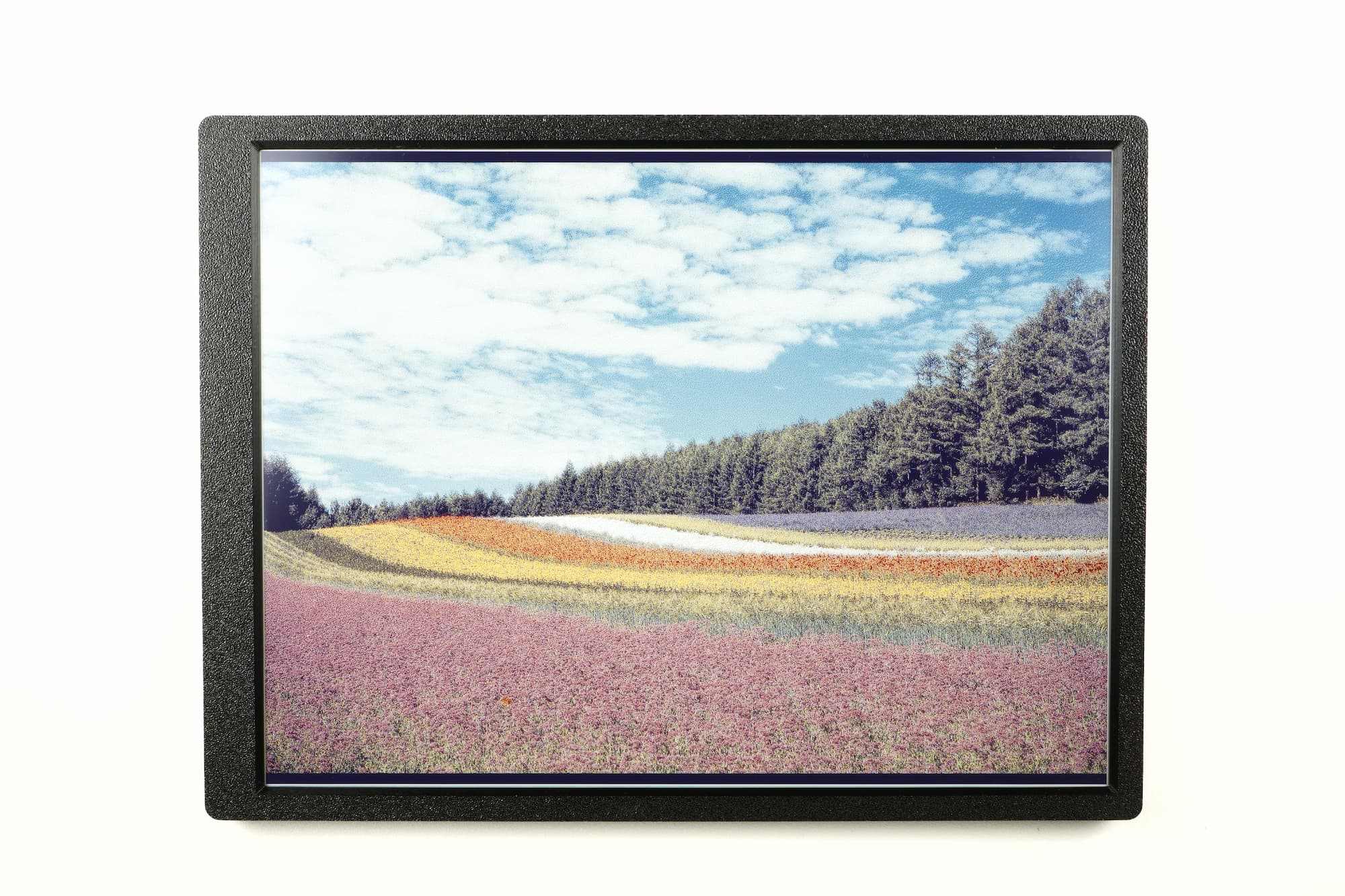

Example output displayed on e-paper display

inkplate.image.draw()

The function draws an image from the given path.

Returns value: Returns true if the image was successfully drawn, otherwise false.

Function parameters:

Type	Name	Description
const char*	path	The path and filename of the image. Can be a URL (for web images) or a file path (on the microSD card).
int	x	X-coordinate of the image's upper-left corner in the framebuffer.
int	y	Y-coordinate of the image's upper-left corner in the framebuffer.
uint8_t	dither	Dithering mode: 0 (disabled), 1 (enabled).
bool	invert	If true, inverts colors.

---

Full example

[LINK PLACEHOLDER - 13spectra example github]
