Inkplate 6MOTION - Battery

⚠️
This page contains important information about using a battery with Inkplate 6MOTION. For safety reasons, please read this page carefully!

Inkplate 6MOTION includes a 2-pin 2mm JST connector, allowing you to connect a 3.7V Li-ion battery. The onboard charging IC, MCP73831, automatically charges the battery when Inkplate is plugged into USB-C and switches to battery power when unplugged. A charging indicator LED provides real-time charging status.

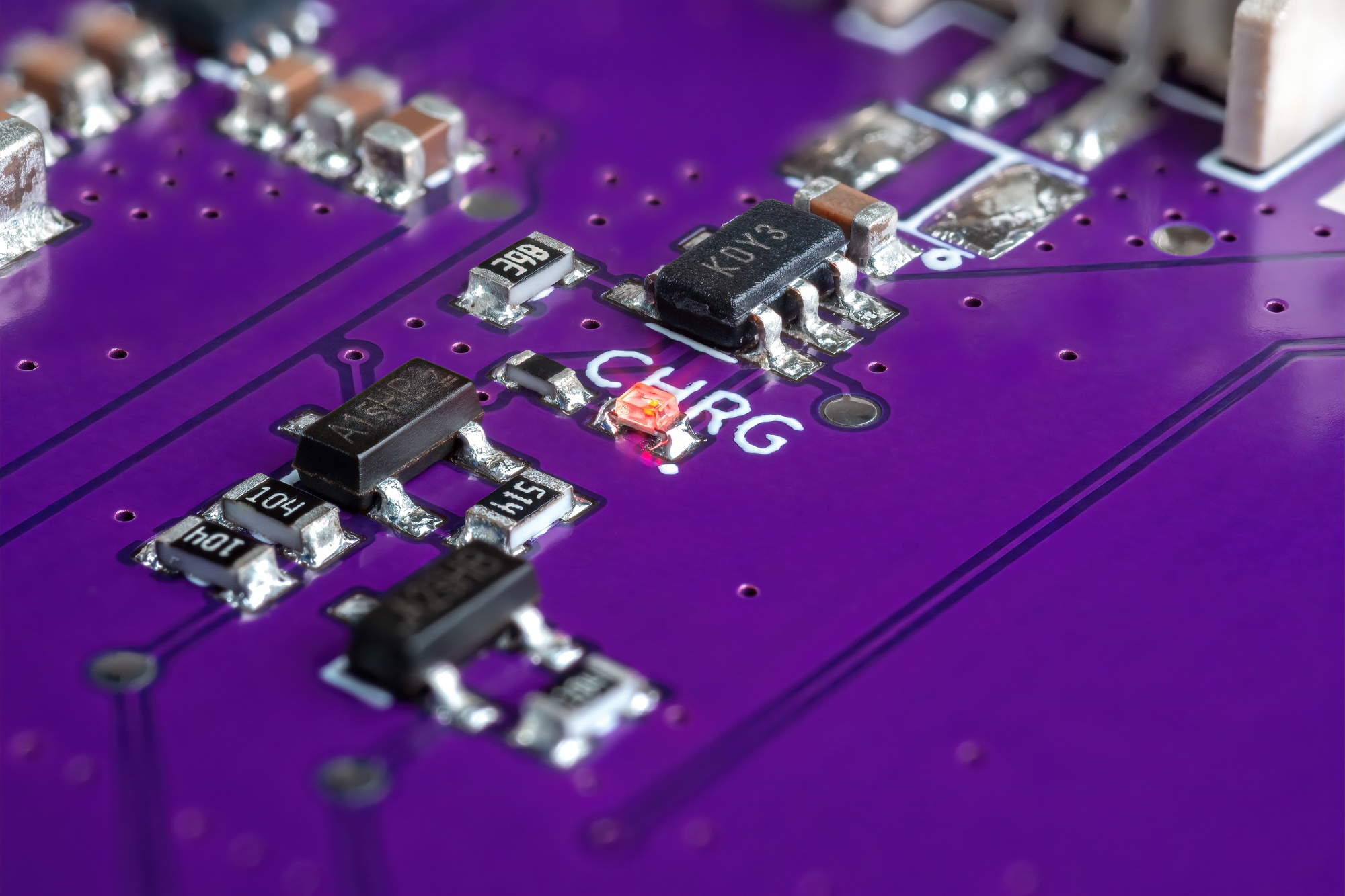

Inkplate 6MOTION Onboard charging indicator LED
Onboard charging indicator LED

Connector and polarity​

Get the battery polarity right. Check the markings on the PCB before connecting a battery. When orienting the JST connector with the notch at the top, the positive (+) terminal is on the left, and the negative (-) terminal is on the right.

Inkplate 6MOTION battery JST connector
JST battery connector
⚠️
Battery polarity can vary! Some Li-ion batteries have reversed polarity. Connecting a battery with the wrong polarity may permanently damage your Inkplate! Double-check before plugging it in.

Compatible batteries​

Inkplate 6MOTION is compatible with 3.7V Li-ion batteries with protection. If you purchased the Inkplate 6MOTION enclosure and battery kit, it includes a 1200mAh 3.7V Li-ion battery with a built-in protection circuit.

3.7V li-ion battery with protection
3.7V li-ion battery with protection

Any of Soldered's 3.7V Li-ion batteries will work as long as they fit inside your enclosure.

ℹ️
Due to shipping restrictions, we cannot ship Li-ion batteries outside the EU. If you're in the US, we recommend checking out Adafruit's Li-ion battery stock.

Charging IC (MCP73831)​

The MCP73831 is a compact, single-cell Li-ion/Li-Polymer charge management controller. It regulates the charging process, ensuring safe and efficient charging via USB. The chip follows a constant-current / constant-voltage (CC/CV) charging profile. A deeply discharged cell first gets a gentle preconditioning (trickle) charge, then full constant current, and finally constant voltage as it approaches full.

Key features:

  • Automatic charge termination when the battery is full
  • Thermal regulation and reverse-discharge protection
  • Charge status indicator (connected to the onboard LED)
ℹ️
For full technical details, refer to the MCP73831 datasheet:

MCP73831/2 Data Sheet

Official data sheet for MCP73831/2 charger by Microchip
