Inkplate 5v2 MicroPython - Draw image from WiFi

Inkplate 5v2 can connect to WiFi and fetch images directly from the internet. This example downloads a JPEG file from a URL and renders it on the e-paper display.

---

Downloading and displaying an image

Here is a complete example that connects to WiFi and loads an image from the web. Replace the SSID and password with your own WiFi credentials.

import network
import time
from inkplate5v2 import Inkplate

SSID = "ENTER_SSID_HERE"
PASSWORD = "ENTER_PASSWORD_HERE"

def do_connect():
    sta_if = network.WLAN(network.STA_IF)
    if not sta_if.isconnected():
        print("Connecting to network...")
        sta_if.active(True)
        sta_if.connect(SSID, PASSWORD)

        timeout = 30
        start = time.ticks_ms()
        while not sta_if.isconnected():
            if time.ticks_diff(time.ticks_ms(), start) > timeout * 1000:
                print("Failed to connect within timeout")
                return False
            time.sleep(0.5)
    print("Network config:", sta_if.ifconfig())
    return True

# Create Inkplate in 2-bit grayscale mode
inkplate = Inkplate(Inkplate.INKPLATE_2BIT)
inkplate.begin()

if not do_connect():
    raise SystemExit("WiFi connection failed")

inkplate.draw_image(
    "https://i.imgur.com/8yvGmvs.jpeg",
    0, 0,
    invert=False,
    dither=True,
    kernel_type=Inkplate.KERNEL_FLOYD_STEINBERG
)

inkplate.display()

inkplate.draw_image()

Download and draw an image from a URL or local file path onto the display buffer.

Function parameters:

Type	Name	Description
String	path	Image URL or local file path.
Number	x0	X coordinate of top-left corner where image will be placed.
Number	y0	Y coordinate of top-left corner where image will be placed.
Boolean	invert	If True, invert black and white colors.
Boolean	dither	Enable or disable dithering for grayscale images.
Constant	kernel_type	Dithering algorithm to use (e.g., Inkplate.KERNEL_FLOYD_STEINBERG).

ℹ️

Available options for dithering algorithm:

Algorithm	Value
Inkplate.KERNEL_FLOYD_STEINBERG	0
Inkplate.KERNEL_JJN	1
Inkplate.KERNEL_STUCKI	2
Inkplate.KERNEL_BURKES	3

Performance notes

• JPG: ~3 seconds (or ~7s with dithering)
• PNG: ~10 seconds (or ~14s with dithering)
• BMP: ~15 seconds (or ~20s with dithering)
• Maximum image file size: ~800kB

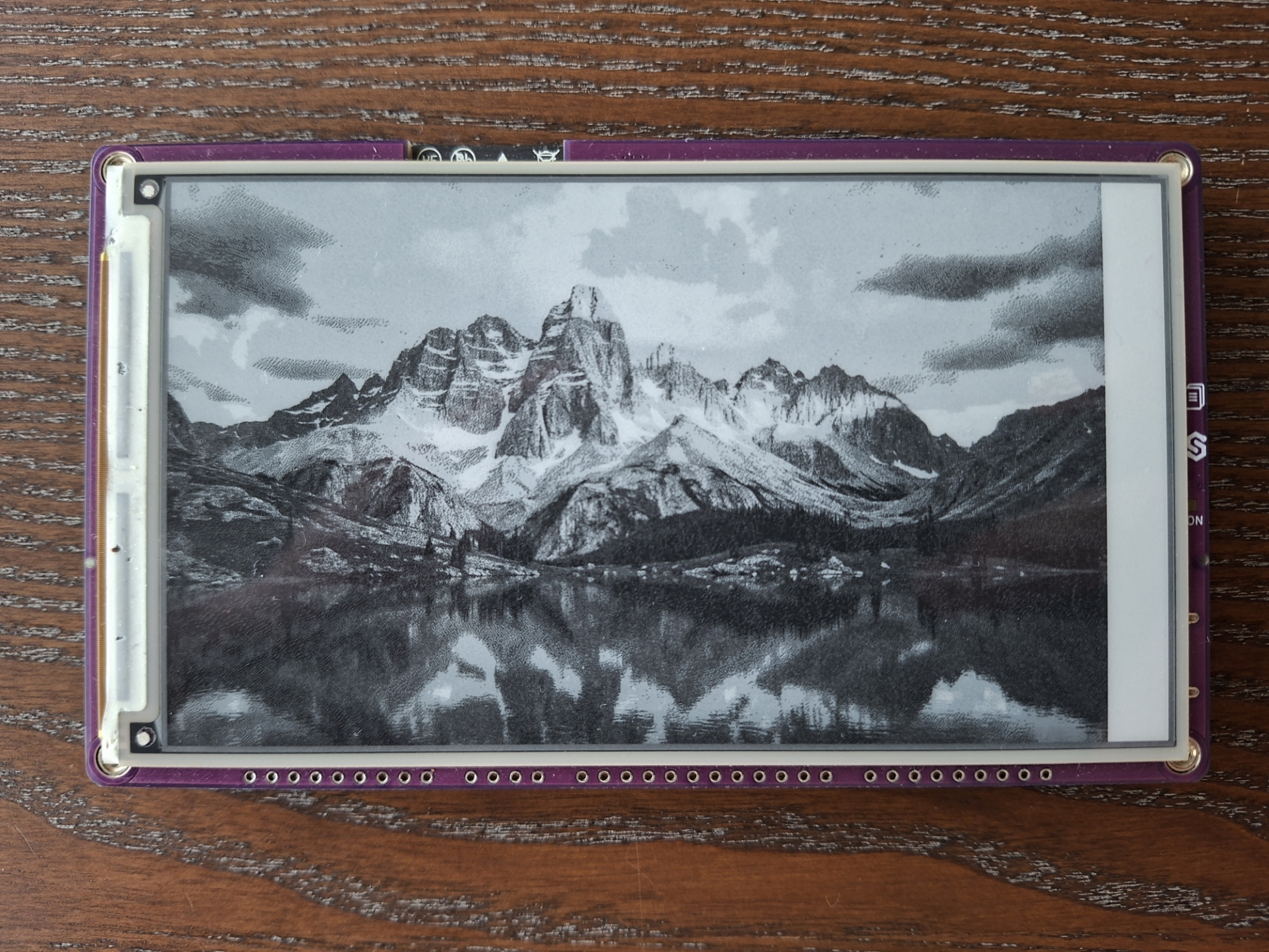

Displaying an image from web.

---

Full example

display_image_web.py

Connect to WiFi and render an image from a URL.
